Model NO. : DS
Type : Cooling Fan
Electric Current Type : AC
Mounting : Ceiling Fan
Certification : RoHS, ,ISO, CE, SGS
Transport Package : Wooden
Specification : 16-24FT, 50rpm, 1.5KW, diameter 5-7.3 meter
Trademark : DAISEN
Origin : China, Chengdu
HS Code : 8414591000
Customization : Available
Material : Aluminum Fan
Blade Material : Al-Mg Alloy
Model | Fan diameter | Motor power | Max speed | Rated voltage | Air volume | Max coverage | Weight | Noise |
DS-7.3 | 7.3M(24FT) | 1.5KW | 50rmp | 220V/380V | 14800M3/min | 1200m3 | 126KG | ≤60db |
DS-6.7 | 6.7M(22FT) | 1.5KW | 55rmp | 220V/380V | 13600M3/min | 1000m3 | 123KG | ≤60db |
DS-6.1 | 6.1M(20FT) | 1.5KW | 55rmp | 220V/380V | 12900M3/min | 800m3 | 119KG | ≤60db |
DS-5.5 | 5.5(18FT) | 1.5KW | 55rmp | 220V/380V | 12200M3/min | 600m3 | 116KG | ≤60db |

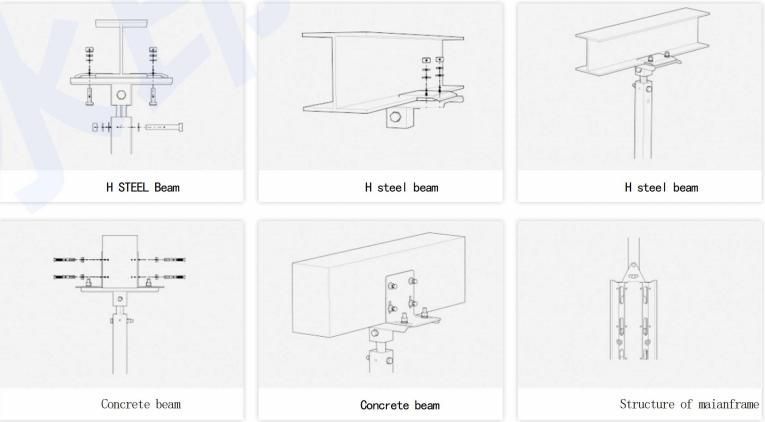

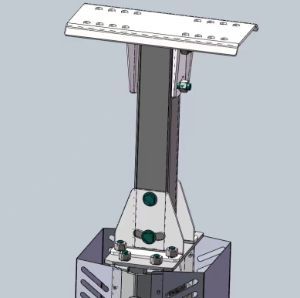

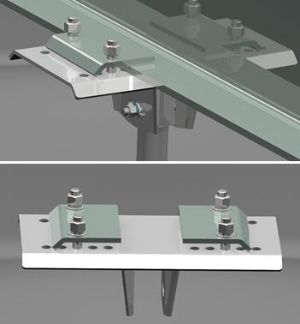

* Standard universal mount compatible with most common industrial building structures
* Up to 240Nm of torque for easier and more stable high air volume output
* The fan blade handle is flexibly connected to release high-frequency vibration, and there is no metal fatigue for long-term operation
* Comply with CCC, CE, UL and other international standards, and key components have passed safety testing
* Industrial-grade safety product requirements, long-term stable operation in harsh and harsh environments
Features of Traditional HVLS Fans
![]() |
Ceiling Mounted Traditional Hvls Electric Ceiling Fan with 6 Aluminum Blades Customization Images |
